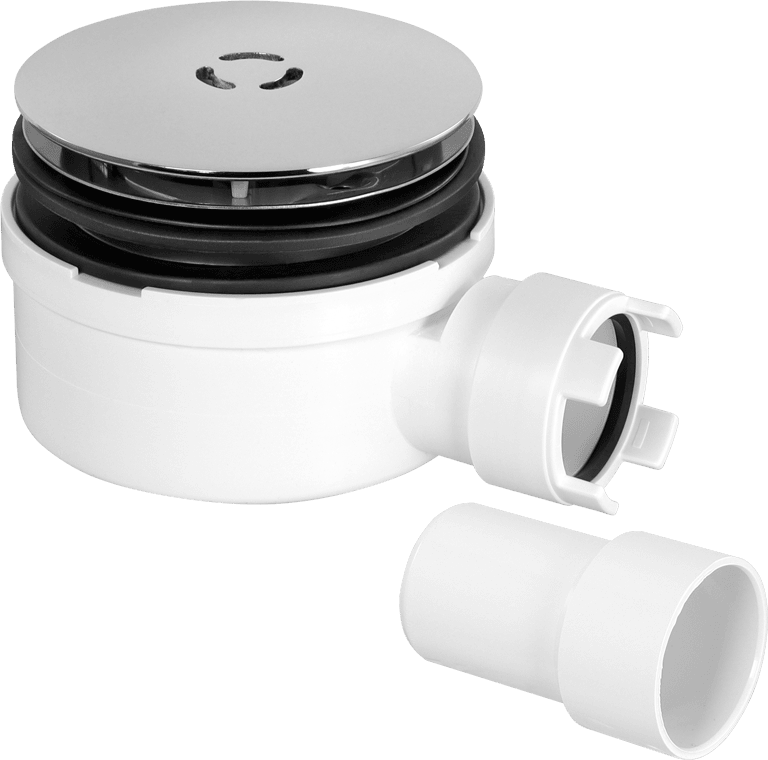

90mm x 25mm Water Seal Slim Shower Trap with 1½” Solvent Weld Outlet

• Flanges available in Chrome Plated Plastic, or Chrome Plated Brass
• Suitable for shower trays with a 90mm waste hole
• Overall height is only 53mm
• Fixed with Stainless Steel Clamping Ring and 3 securing screws for tight connection to the shower tray
• 25mm Water Seal
• Supplied with 1½” solvent weld socket
• Removable 110mm flange facilitates easy cleaning
• Flow rate 24 l/min when tested under a constant 15mm head of water in accordance with clause 5 of BS EN 274-2:2002
• 82mm under-tray dimension
• Suitable for tray thickness 0-17mm
• Note: Longer flanges are available to suit thicker trays with a tray thickness between 7-24mm.
  • For Product codes ST90CP10, ST90CB10, ST90WH10: additional longer flange code is: STW90W/BODY-L
  • For Product code ST90CPB-P: additional longer flange code is:
    P-CPB-ST90-P-43MM
  • For Product code ST90CPB-S: additional longer flange code is:
    P-CPB-ST90-S-43MM
